1. Simple Introduction

This series of impact testing machine for the determination of metallic materials at room temperature (or low) state Under dynamic load resistance performance hit, in order to determine the quality of materials under dynamic load status effects., The machine adopts MCU control, Yang placed to achieve → Location → impact → measurement → calculation → store and analyze the results of the integration of operations → peer printing, High efficiency, high precision.

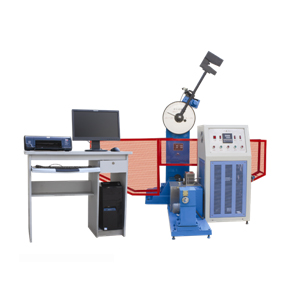

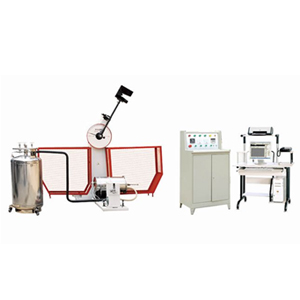

low-temperature impact testing machine with a compressor (or liquid nitrogen cooling), The lowest temperature reaches -60 ℃ (or -190 ℃, -196 ℃ special requirements), Especially for the determination of metallic materials at low temperature impact resistance state. Metallurgy, machinery manufacturing, scientific research and testing, and other units detection material and significant research and development of new materials testing equipment.     Computer-controlled semi-automatic impact testing machine(Room temperature)                        Computer controlled automatic impact tester (low temperature)



Impact energy	150/300J	Cooling way	Compressor cooling (-100 Following is a liquid nitrogen cooling)
Pre pendulum Yang angle	150°	Sample box capacity	10 are cooled 4
Pendulum shaft center to the impact point distance	750mm	Low temperature range	Or -60 ℃ ~ -190 ℃, -196 ℃
Impact velocity	5.2m/s	Sample size	10mm×10mm×55mm
Specimen bearing span	40mm	Dimensions	1600mm×850mm×1340mm
Rounded jaws	R1-1.5mm	Test machine weight	约500Kg
Impact of the blade fillet	R2-2.5mm，R8±0.05mm(Non-standard)	Power supply	Three-phase AC 380V±10%



The criteria used: In line with the national standard GB / T3808-2002 《pendulum impact testing machines》, According to national standard GB / T229-2007 《metal Charpy pendulum impact test method》 of metal material impact test.

Belongs Material: Metal Material

Industry: This series of impact testing machine is the ideal choice for metallurgy, boiler and pressure vessel steel, steel, metal, casting, pumps, valves, fasteners, travel, machinery manufacturing, petrochemical, aerospace and research institutions and other sectors of physics and chemistry laboratories percussion device.

Test Type: Impact



■ semi-automatic impact testing machine computer control, Yang pendulum, hanging pendulum impact both electrical and mechanical control,Automatic impact testing machine equipped with special devices to send samples automatically feed. Sample automatic face orientation, To ensure that the sample baked to impact time is less than 4 seconds, Meet the requirements of low-temperature metal Charpy impact test method.. Sample Punch fractured surplus energy available automatic Yang pendulum, Ready to do the next test. The computer can calculate display material impact absorbed energy, toughness, the pendulum Yang angle and test average, And can print when the mean value of the test data and testing.

■ were equipped with special liquid nitrogen tank.
